CEJN 10-985-1559

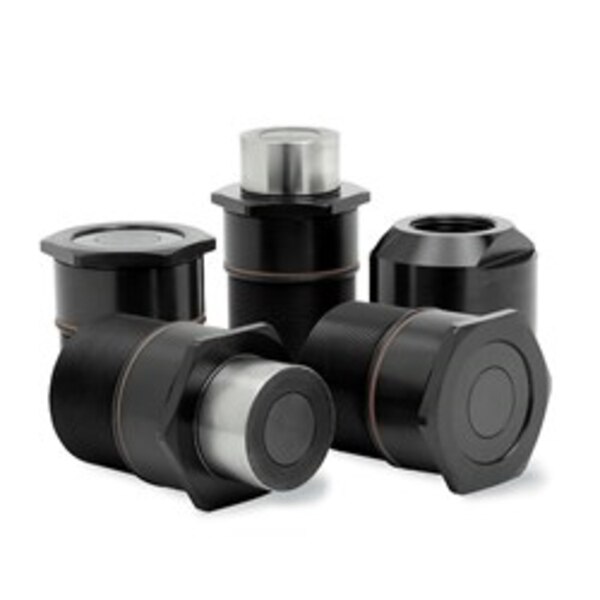

CEJN (10-985-1559) Series 985, DN19 Hydraulic Auto-Coupling, M52 x 1.5, 19mm Nominal Flow Diameter, Working Pressure of up to 4351PSI (300 bar), Black Finished Steel
CEJN Series 985 is specially designed for industrial automation where our manufacturing connections can minimize costly downtime due to repair-work or mold and tool changes. CEJN Auto-Couplings built into manifolds allow fast, simultaneous connection and disconnection of an unlimited number of lines for a wide variety of media. The unique patented design enables the couplings to be connected/disconnected under full working pressure. The high performing couplings and nipples have a working pressure of up to 4350 PSI (300 bar) and their Flat-Face, Non-Drip design ensures leak-free performance. Series 985 is made of steel and is suitable for hydraulic applications such as clamping and palletizing machines and automatic tool changing systems on machine tools. The Series has a wide choice of thread connections where G, Rc and NPT are available as standard. There are alternative ways of mounting by using separate thread connections. Special models using other materials are available on request.
