EPSON ROBOTS RVT6L-A901SS

(0) No Reviews yet
Price Each:   Please Call or Email
SKU: RVT6L-A901SS
Standard Shipping Lead Time 14 Business Days

Item is IN STOCK. Stock Items ship within 24 Hours.

Current Stock: 2

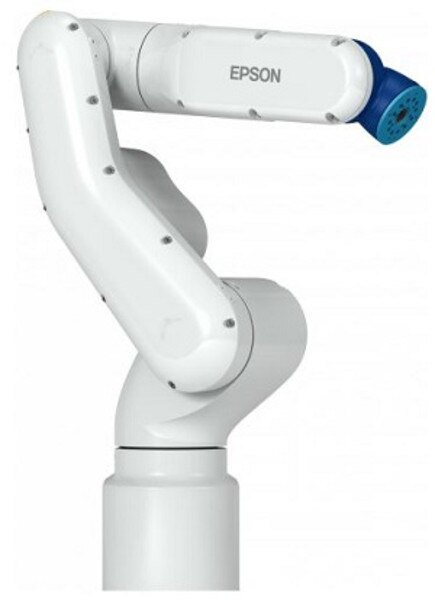

EPSON ROBOTS (RVT6L-A901SS) 6 Axis Robot with Built-In Controller, Payload nom. 3 kg, Max. 6 kg, Reach horizontal 900 mm, Repeatability +/- 0.1 mm, Battery-less motor unit, All-in-One Standard Table Top, Ceiling or Wall Mount 6-Axis Robot (with 5 meter cable), built-in controller and EPSON RC+ 7.x software. (Machine specifications: 6 kg maximum payload, 920 mm reach to P point, 1000 mm to tool mounting surface, +/- 0.1 mm repeatability). ***MUST SHIP TRUCKLINE DUE TO WEIGHT***
Range of operation- J6: +/- 360 °, J5: +/- 125 °, J4: +/- 200 °, J3: + 190 ° / - 51 °, J2: + 65 ° / - 160 °, J1: +/- 170 ° Max. Operating Speed- J4: 271 °/s, J5: 297 °/s, J6: 293 °/s, J1: 166 °/s, J2: 123 °/s, J3: 119 °/s Moment of Inertia- J4: 0.3 kg*m², J5: 0.3 kg*m², J6: 0.1 kg*m² User Wires Pneumatic- 3x (1x4mm Ø & 2x6mm Ø) Product weight- 40 kg Controller- Controller built in Mounting option- Ceiling or Pedestal IP protection class- IP20 Power and signal cable- 5m What's in the box? Epson RC+ program CD including simulation software, Epson robot and controller, Installation/safety manual, Set of connectors for user wiring Certifications? Machinery Directive: EN 60204-1, EMC Directive: EN 55011 Ambient temperature- 5 ° C - 40 ° C
Click HERE to download literature or more information on this product.
