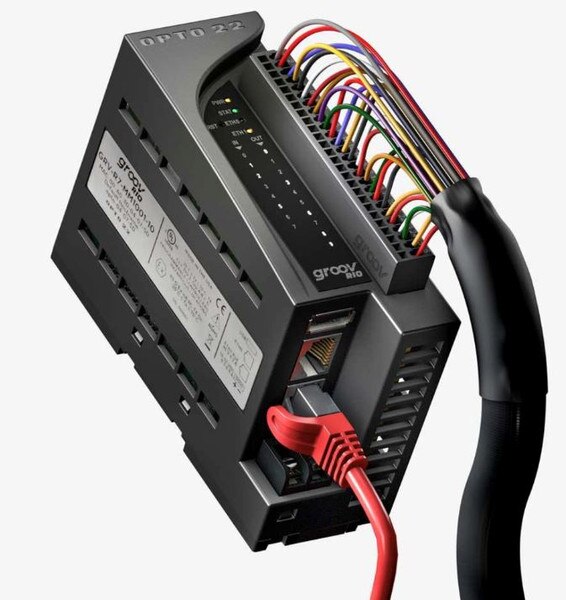

OPTO22 GRV-R7-MM1001-10

OPTO22 (GRV-R7-MM1001-10) groov RIO: I/O for the IIoT, Power the unit and connected I/O with 802.3af PoE Class 0 switches, or a 10-32 VDC power supply, Wire up to 8 channels of mixed I/O signals (configurable for temperature, current, voltage, or discrete inputs or outputs), plus 2 mechanical relays, Run optional distributed features independently on the processor, including counting, thermocouple linearization, digital totalizing, minimum/maximum values, ramping, and more, Integrate I/O data directly with databases, HMIs, SCADA systems, cloud services, and IoT platforms, using embedded Node-RED, Connect to existing control systems or building automation systems with Modbus/TCP, OptoMMP, and REST APIs, Publish process data directly into publish-subscribe architectures with MQTT and Sparkplug or string payloads, Log data to internal power-fail safe memory or an attached USB mass storage device, Protect with built-in security, including configurable firewalls, encryption, user accounts, and VPN client, Install anywhere with wide -20 to 70 °C rating, UL, Hazardous Locations approval, ATEX compliance
