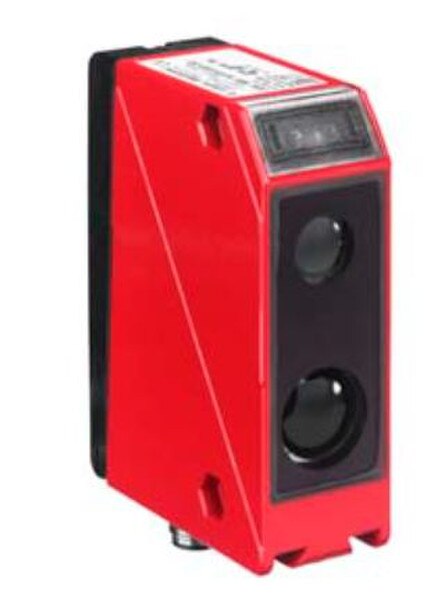

LEUZE ODS 96B M/C6-600-S12

Series 96 Type of scanning system Against object Light source LED, Infrared Light spot size [at sensor distance] 15 mm x 15 mm [600 mm] Measurement range 100 ... 600 mm Resolution 0.1 ... 0.5 mm Accuracy 1.5 % Reference value, accuracy Measurement distance Repeatability 0.5 % Reference value repeatability Measurement distance Measurement time 1 ... 5 ms Referencing No Black/white behavior 1 % Optical distance measurement principle Triangulation Supply voltage UB 18 ... 30 V, DC Number of digital switching inputs 1 Piece(s) Function Programmable Number of analog outputs 1 Piece(s) Number of digital switching outputs 1 Piece(s) Type Current Switching element Transistor, Push-pull Type of connection Connector Thread size M12 Material Metal No. of pins 5 -pin Dimension (W x H x L) 30 mm x 90 mm x 70 mm Housing material Metal Metal housing Diecast zinc Lens cover material Glass Net weight 380 g Type of configuration Software Operational controls Membrane keyboard PC software Ambient temperature, operation -20 ... 50 °C Ambient temperature, storage -30 ... 70 °C Degree of protection IP 67 IP 69K
