MARATHON SPECIAL PRODUCTS 1413400

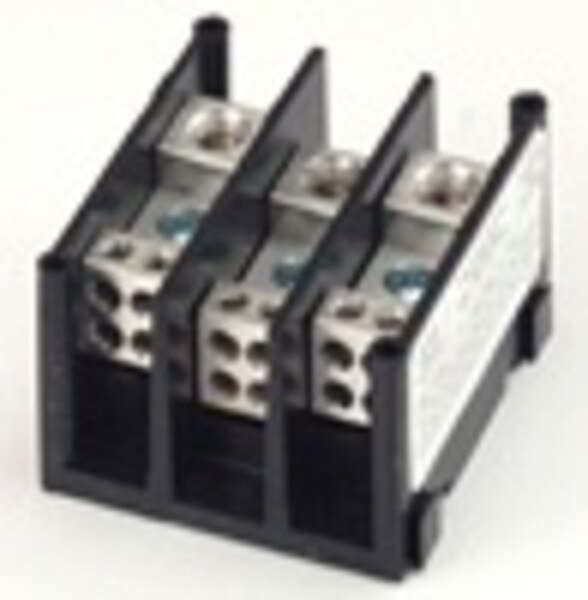

MARATHON SPECIAL PRODUCTS (1413400) Power Distribution Block, 3-Pole, 115 Amps, 600V Ac/DC, Line: (1) #2 - #14 AWG, Load: (4) #10 - #18 AWG
115 Amps 600 Volts AC/DC Wire Range • Line: (1) #2-#14 AWG • Load: (4) #10-#18 AWG Electrical Ratings • 115 Amps • 600V per UL 1059 & CSA 22.2 No.158, class B & C requirements • Short circuit current ratings (SCCR): See SCCR section below for specifications. • CU7AL - 75°C connector terminal rating with copper or aluminum wire • Factory & Field Wiring Agency Compliance • UR - UL Recognized Terminal Block, Evaluated to UL 1059, File No.XCFR2.E62806 • CSA - certifed to C22.2 No. 158, File No. LR19766 (wire classes B & C only) • CE compliant to IEC 60947-7-1 Material Information • Insulator base: • Thermoplastic • Flammability rating of insulator base UL94V0 • Insulator base temperature rating: -40°C to 125°C (UL RTI) • Connector: aluminum, tin plated • Terminal screws: steel, nickel plated • Connector mounting screws: steel, zinc plated • RoHS compliant
