Price Each:   $314.07
SKU: 1443560
Standard Shipping Lead Time 13 Business Days

IF IN STOCK, Items will ship within 24 hours.

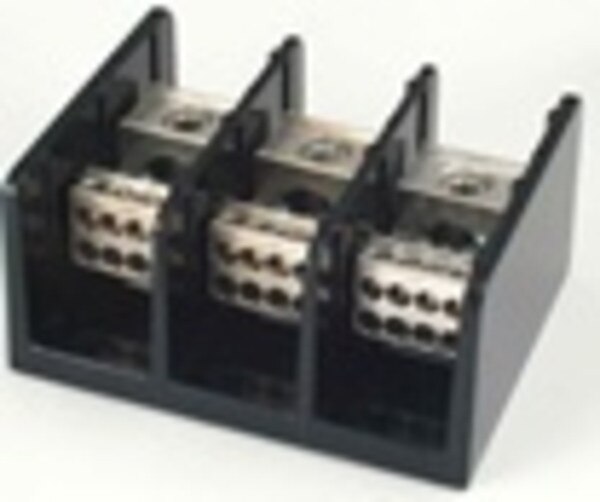

MARATHON SPECIAL PRODUCTS Power Distribution Block - NEMA Series, 3 Pole- 335 Amp, 600 volts AC/DC (UL), Phenolic, AL Connector. 1 Line Side Connector Openings, Wire Range AWG/kcmil 400-#6. 8 Load Side Connector Openings, Wire Range AWG/kcmil #2 - #14
Electrical: 60 - 2280 amps, 600 volts AC/DC (UL), Flexible stranded wire compliant, Multiple wire rating - refer to data sheets for details, Listed products provide feeder circuit terminal spacing, Mechanical Base, black thermoplastic or phenolic , Insulator temp-ratings, Thermoplastic: 125°C (257°F) - UL RTI, Phenolic:150°C (302°F) - UL RTI, Flammability, UL 94 V-0, Mounting: panel mountable, 132 series is also DIN mountable. Standards: See datasheets for product specific approvals listed, UL listed - or - UL recognized, Listed file no. QPQS.E309401 (UL 1953), Recognized file no. XCFR2.E62806 (UL 1059), CSA certified file no. LR19766 (CSA C22-2 No. 158), CE (Component IEC 60947-7-1), RoHS compliant (all). Accessories: Marking strips - available with custom printing, Printing - consult factory for custom requests
Click HERE to download literature or more information on this product.
