MENCOM CDM-64

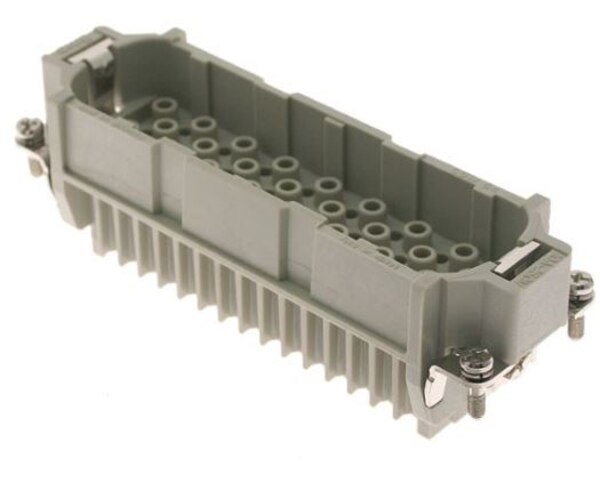

MENCOM Standard, CD series, Male Rectangular Insert, size 104.27, 64 pin, 10 amp, Crimp
PRODUCT TYPE Rectangular Connectors ILME SERIES CD COMPONENT TYPE Insert HOUSING/INSERT TYPE Standard ENCLOSURE DIMENSION 104.27 GASKET/O-RING No PIN COUNT 64 INSERT DIMENSION 104.27 GENDER Male DOUBLE INSERT 104.62 VOLTAGE RATING 600 AMPERAGE RATING 10 COVER No UPPER AWG 14 LOWER AWG 26 TERMINATION Crimp TEMPERATURE RANGE IN DEGREES CELSIUS -40 C to +125 C WEIGHT (LBS.) 0.155000
