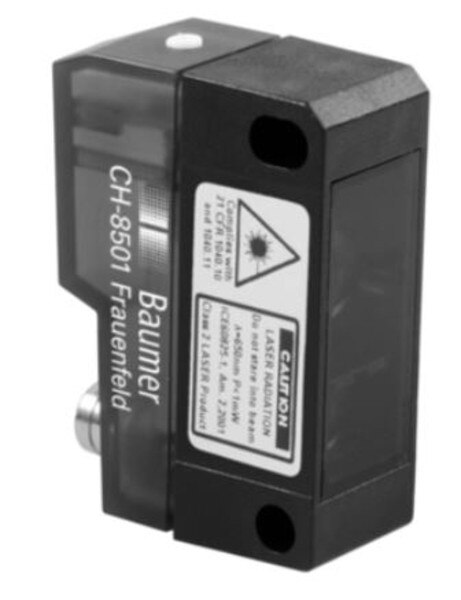

BAUMER OPDK 14P3901/S35A
BAUMER 11001305 Retro-reflective sensors - for longer ranges, retro-reflective laser sensor 4,5 m pulsed red laser diode, PNP, Teach-in connector M8 4 pin, -10 … 50 °C IP 67
electrical data response time / release time < 0,25 ms voltage supply range +Vs 10 ... 30 VDC current consumption max. (no load) 35 mA current consumption typ. 25 mA voltage drop Vd < 2,2 VDC output function light operate output circuit PNP output current < 100 mA teach value stored after power-off volatile short circuit protection yes reverse polarity protection yes mechanical data width / diameter 14,8 mm height / length 43 mm depth 31 mm type rectangular housing material plastic (ASA, MABS) front (optics) PMMA connection types connector M8 4 pin
