RENCO REN-BRS-GREEN

(0) No Reviews yet
Price Each:   Please Call or Email
SKU: REN-BRS-GREEN

IF IN STOCK, Items will ship within 24 hours.

RENCO (REN-BRS-GREEN) Green Button, Retainer and Spring

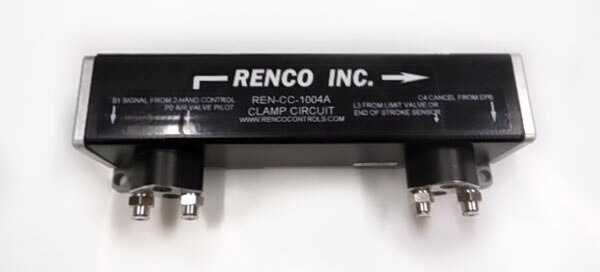

RENCO's clamp circuit is used with a 2-hand control, end of stroke sensor (-eoss) to latch the circuit on, a release button or an optional timer to release. All are pneumatic. This allows an air cylinder to remain clamped after the operator removes hands from the 2-hand control. The work piece thickness may vary as the end of stroke sensor detects when the cylinder stops. Typical operation: Operator presses the 2 green buttons on the 2-hand control, the cylinder advances and clamps on to the work piece, a signal is sent to the clamp circuit to latch on. Hands may be removed from the 2-hand control. The release button or an optional timer is used to release. REN-CC-1004A OPTIONS AVAILABLE -TMR A 1-20 second adjustable timer to unclamp after the adjusted time is reached. -TMR300 A 5-300 second adjustable pneumatic mechanical timer is used to unclamp after the adjusted time is reached. -4W A 1.1cv 4-way valve is integrated into the clamp circuit. -REN-SP14 A separate 1.1cv, 1.4″npt 4-way valve is shipped with the clamp circuit. -REN-SP12 A separate 4.5cv, 1/2″npt 4-way valve is shipped with the clamp circuit. -EOSS-XX A screw in the cylinder port pneumatic sensor is shipped with the clamp circuit. replace the xx with 1/8, 1/4, 3/8, or 1/2 to designate the cylinder port size in npt. -REN-LMV A compact limit valve that can be used as the end of stroke sensor with 5/32 push lock fittings. -1/4 The clamp circuit will come with 1/4″ push lock fittings in place of the standard 5/32 push lock fittings. ports on the clamp circuit are 1/8npt and fittings may be changed in the field.
Click HERE to download literature or more information on this product.
