SCHUNK 302441

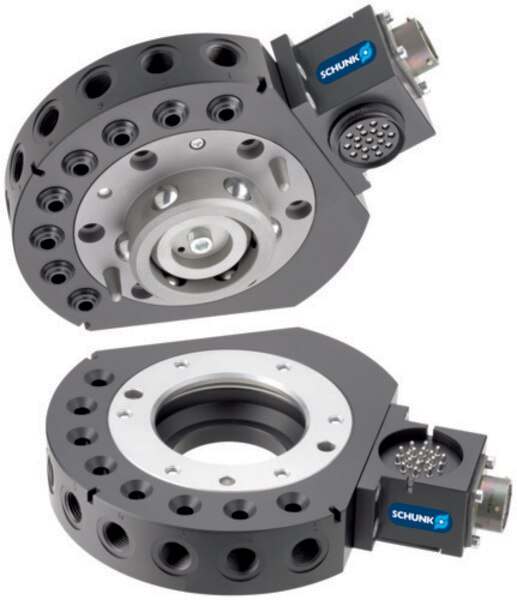

SCHUNK SWA-160-000-000 Pneumatic Quick-Change System, SWS series; recommended handling weight : 300 [kg]; Locking force : 31000 [N]; Weight : 2.86 [kg]; min. locking distance : N/A [mm]; max. locking distance : 2.54 [mm]
recommended handling weight : 300 [kg]; Lock sensing : N/A ; Moment Mx max. : 7170 [Nm]; Moment My max. : 7170 [Nm]; Locking force : 31000 [N]; Repeat accuracy : 0.015 [mm]; Weight : 2.86 [kg]; min. locking distance : N/A [mm]; max. locking distance : 2.54 [mm]; Air connection thread pneumatic feed-through : 5x G3/8" ; Air connection thread pneumatic feed-through : 4x G1/2" ; Main connection lock / unlock : N/A ; Number of electrical feed-throughs : N/A ; max. permissible XY offset : ±2 [mm]; max. permissible angular offset : ±1 [°]; Robot-side connection : ISO 9409-1-125-10-M10 ; min. ambient temperature : 5 [°C]; max. ambient temperature : 60 [°C]; min. operating pressure : 4.5 [bar]; max. operating pressure : 6.9 [bar];
