SCHUNK 303066

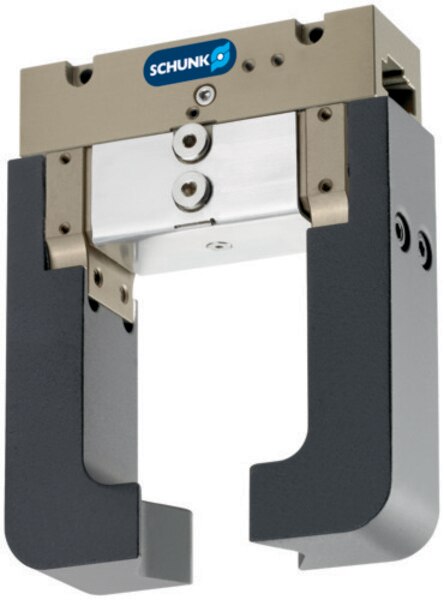

SCHUNK Pneumatic Parallel Gripper, KGG series - KGG 100-80,; Stroke per jaw : 40[mm]; Closing force : 175 [N]; Opening force : 220 [N]; Weight : 0.5 [kg]; recommended workpiece weight : 0.9 [kg]; Fluid consumption double stroke : 45 [cm³]; min. operating pressure : 2.5 [bar]; max. operating pressure : 8 [bar]; Nominal operating pressure : 6 [bar]; Closing time : 0.19 [s]; Opening time : 0.15 [s]; max. admissible finger length : 80 [mm]; max. admissible weight per finger : 0.3 [kg]; Protection class IP : 40 ; min. ambient temperature : 5 [°C]; max. ambient temperature : 90 [°C]; Repeat accuracy : 0.02 [mm]; Moment Mx max. : 4.4 [Nm]; Moment My max. : 7.4 [Nm]; Moment Mz max. : 9.5 [Nm]; max. axial force Fz max. : 480 [N];
