SCHUNK 305275

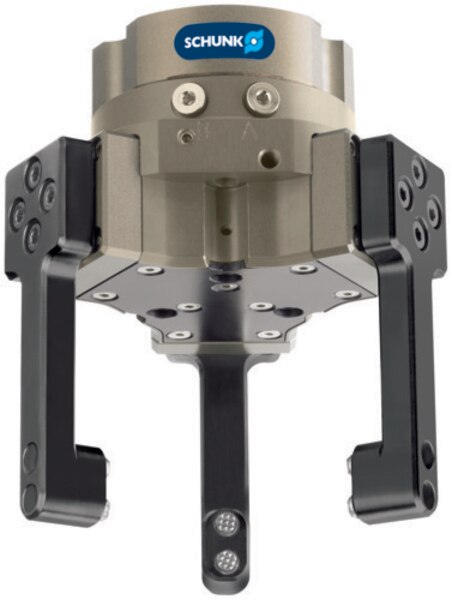

SCHUNK DPZ+ 125-2-IS-EX Gripper; Stroke per jaw : 6 [mm]; Closing force : N/A [N]; Opening force : 8300 [N]; Weight : 4.7 [kg]; recommended workpiece weight : 27.5 [kg]; Closing time : 0.45 [s]; Opening time : 0.22 [s]
SCHUNK Pneumatic Centric Gripper, DPZ-Plus series; Version : ATEX version; Stroke per jaw : 6 [mm]; Closing force : N/A [N]; Opening force : 8300 [N]; min. spring force : 2100 [N]; Weight : 4.7 [kg]; recommended workpiece weight : 27.5 [kg]; Fluid consumption double stroke : 383 [cm³]; min. operating pressure : 4 [bar]; max. operating pressure : 6 [bar]; Nominal operating pressure : 6 [bar]; min. air purge pressure : 0.2 [bar]; max. air purge pressure : 0.5 [bar]; Closing time : 0.45 [s]; Opening time : 0.22 [s]; max. admissible finger length : 80 [mm]; max. admissible weight per finger : 1.75 [kg]; Protection class IP : 67 ; min. ambient temperature : 5 [°C]; max. ambient temperature : 90 [°C]; Repeat accuracy : 0.01 [mm]; Cleanroom class ISO 14644-1 : 5 ; Moment Mx max. : 90 [Nm]; Moment My max. : 110 [Nm]; Moment Mz max. : 75 [Nm]; max. axial force Fz max. : 2100 [N];
