SCHUNK 305550

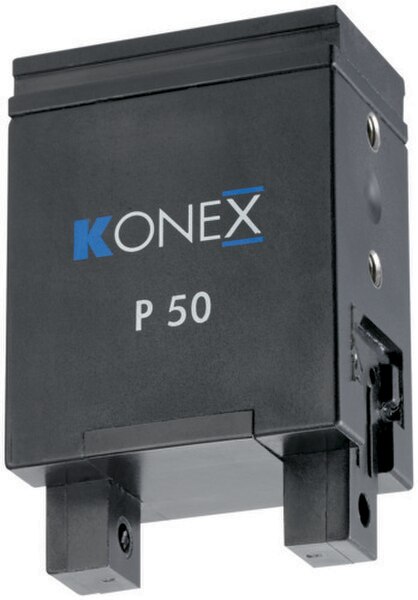

SCHUNK Knoex P50, Parallel Gripper
SCHUNK Pneumatic Parallel Gripper, KONEX P series - KONEX P50, PARALLEL; Stroke per jaw : 5[mm]; Closing force : 85 [N]; Opening force : 100 [N]; Weight : 0.15 [kg]; recommended workpiece weight : 0.2 [kg]; Fluid consumption double stroke : 5.2 [cm³]; min. operating pressure : 2.5 [bar]; max. operating pressure : 6.5 [bar]; Nominal operating pressure : 6 [bar]; Closing time : 0.03 [s]; Opening time : 0.025 [s]; max. admissible finger length : 50 [mm]; max. admissible weight per finger : 0.05 [kg]; Protection class IP : 30 ; min. ambient temperature : 5 [°C]; max. ambient temperature : 60 [°C]; Repeat accuracy : 0.05 [mm]; Moment Mx max. : 0.25 [Nm]; Moment My max. : 0.32 [Nm]; Moment Mz max. : 0.9 [Nm]; max. axial force Fz max. : 35 [N];
