SCHUNK 308622

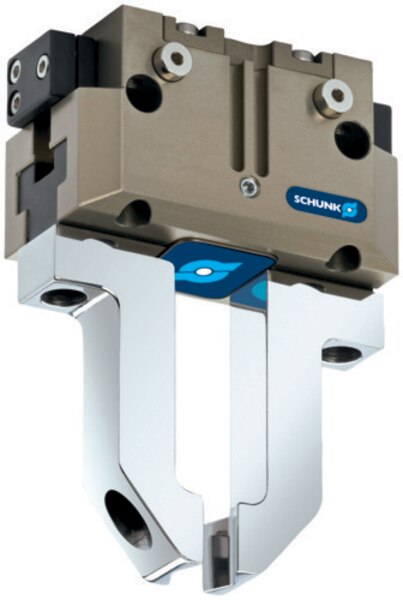

SCHUNK JGP 64-1-IS Pneumatic Parallel Gripper, JGP series ; Stroke per jaw : 6 [mm]; Closing force : N/A [N]; Opening force : 360 [N]; Weight : 0.37 [kg]; recommended workpiece weight : 1.25 [kg]; Closing time : 0.04 [s]; Opening time : 0.02 [s]
SCHUNK Pneumatic Parallel Gripper, JGP series - JGP 64-1-IS,; Stroke per jaw : 6[mm]; Closing force : N/A [N]; Opening force : 360 [N]; min. spring force : 90 [N]; Weight : 0.37 [kg]; recommended workpiece weight : 1.25 [kg]; Fluid consumption double stroke : 21 [cm³]; min. operating pressure : 4 [bar]; max. operating pressure : 6.5 [bar]; Nominal operating pressure : 6 [bar]; min. air purge pressure : 0.5 [bar]; max. air purge pressure : 1 [bar]; Closing time : 0.04 [s]; Opening time : 0.02 [s]; Closing- / opening time with spring : 0.08 [s]; max. admissible finger length : 72 [mm]; max. admissible weight per finger : 0.35 [kg]; Protection class IP : 40 ; min. ambient temperature : 5 [°C]; max. ambient temperature : 90 [°C]; Repeat accuracy : 0.01 [mm]; Moment Mx max. : 32 [Nm]; Moment My max. : 48 [Nm]; Moment Mz max. : 32 [Nm]; max. axial force Fz max. : 800 [N];
