SCHUNK 320531

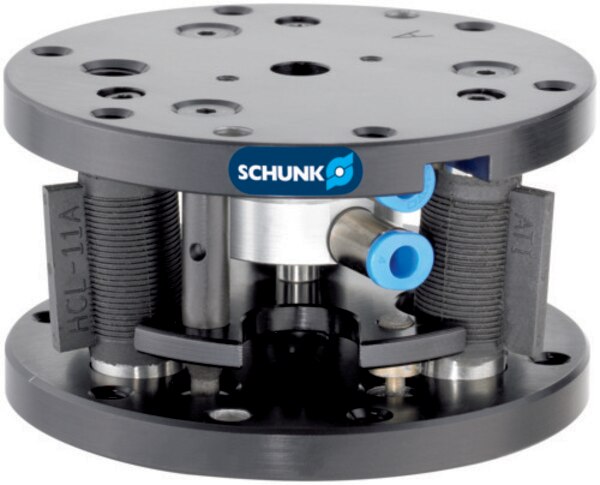

SCHUNK FUS-212B Pneumatic Insertion Unit, FUS series; Weight : 0.5 [kg]
Locking : mit Verriegelung ; Compensation XY : ±2.2 [mm]; Angular deflection : 1.1 [°]; Deflection, rotatory : 4 [°]; Rigidity shift : 7 [N/mm]; Compensation center distance : 91 [mm]; Repeat accuracy : ±0.026 [mm]; Weight : 0.5 [kg]; min. operating pressure : 5 [bar]; max. operating pressure : 6 [bar]; min. ambient temperature : 5 [°C]; max. ambient temperature : 60 [°C]; max. force Fx/Fy vertical installation : 62 [N]; max. force Fx/Fy horizontal installation : 8.9 [N]; Force Fz max. : 62 [N]; Force Fd max. : 710 [N]; Moment Mx max. : 7.3 [Nm]; Moment My max. : 7.3 [Nm];
