SCHUNK 324481

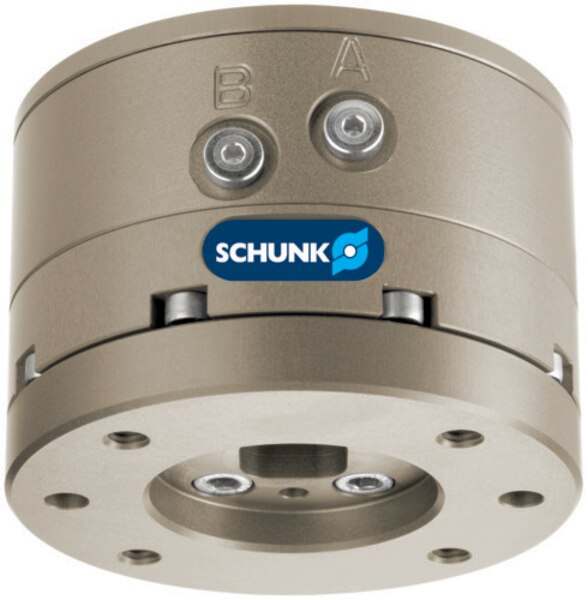

SCHUNK AGE-XY-80-P, Pneumatic XY Compensation Unit, AGE-XY series; Locking force : 580 [N]; max. load force locked : 310 [N]; Weight : 1.5 [kg]
Compensation XY : ±4 [mm]; Deflection, rotatory : ±16 [°]; max. handling weight horizontal : 15 [kg]; max. handling weight horizontal : 10 [kg]; recommended handling weight position storage : 4 [kg]; Locking force : 580 [N]; max. load force locked : 310 [N]; max. radial force, position storage : 145 [N]; Rotation moment position storage : 4 [Nm]; max. distance shifting force Z : 200 [mm]; min. operating pressure : 2.5 [bar]; max. operating pressure : 8 [bar]; Nominal operating pressure : 6 [bar]; Repeat accuracy : 0.1 [mm]; Robot-side connection : ISO 9409-1-80-6-M8 ; Weight : 1.5 [kg]; min. ambient temperature : 5 [°C]; max. ambient temperature : 60 [°C]; Moment Mx max. : 30 [Nm]; Moment My max. : 30 [Nm]; Moment Mz max. : 9 [Nm]; Force Fz max. : 750 [N]; Force Fd max. : 3200 [N];
