SCHUNK 1324471

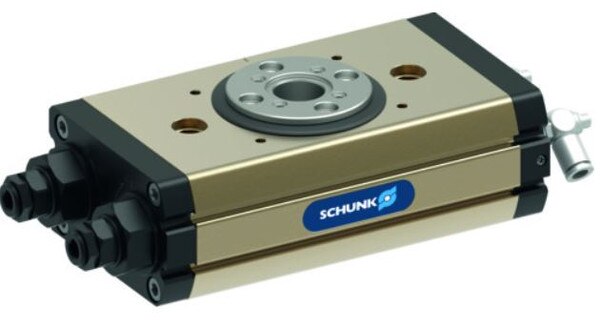

SCHUNK (1324471) SRM 25-H-180-3, Universal swivel unit SRM, Size: 25, pneumatic, Angle of rotation: 180°, End position adjustability: 3 °, End position damping: hydr. damper, Torque: 5.95 Nm
End position damping hydr. damper Angle of rotation [°] 180 Torque [Nm] 5.95 IP protection class 65 Weight [kg] 1.71 Fluid consumption (2x nom. angle) [cm³] 84 Nominal operating pressure [bar] 6 Min. operating pressure [bar] 4 Max. operating pressure [bar] 6.5 Diameter of connecting hose 6 x 3.9 x 1.05 Min. ambient temperature [°C] 5 Max. ambient temperature [°C] 60 Repeat accuracy [°] 0.07 Diameter of center bore [mm] 17.1 Max. mass moment of inertia [kgm²] 0.5 Length X [mm] 175 Width Y [mm] 80 Height Z [mm] 51 Moment My max. [Nm] 64 Max. force axial Fz max. [N] 2243
