SCHUNK 9948542

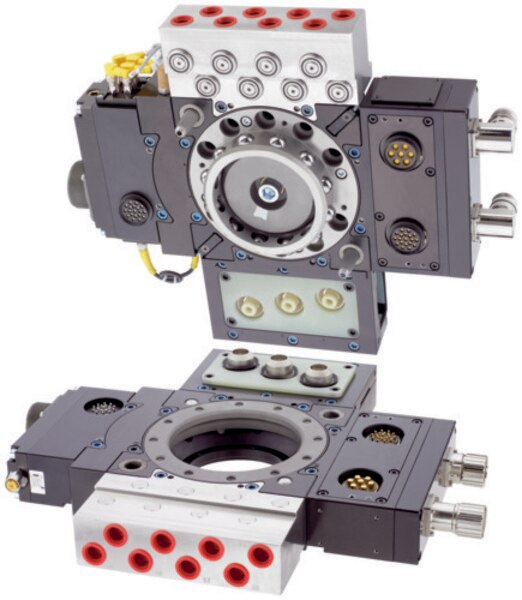

SCHUNK SWA-210CT-0-0-0-0 Pneumatic Quick-Change System, SWS-L series; recommended handling weight : 300 [kg]; Locking force : 31000 [N]; Weight : 2.6 [kg]; max. locking distance : 2.5 [mm]
recommended handling weight : 300 [kg]; Lock sensing : N/A ; Moment Mx max. : 7600 [Nm]; Moment My max. : 7600 [Nm]; Locking force : 31000 [N]; Repeat accuracy : 0.015 [mm]; Weight : 2.6 [kg]; max. locking distance : 2.5 [mm]; max. permissible XY offset : ±2 [mm]; max. permissible angular offset : ±1 [°]; min. ambient temperature : 5 [°C]; max. ambient temperature : 60 [°C]; min. operating pressure : 5 [bar]; max. operating pressure : 6.9 [bar];
