SCHUNK D110-SSS-M-1610-800-1030-2SAG-2EO10-8BL1-1-MGK1-GS19

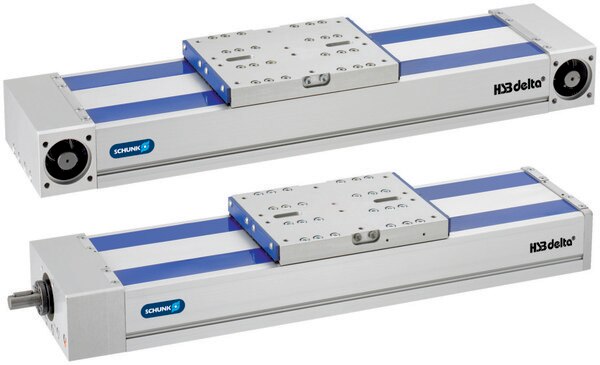

SCHUNK X-Axis, Delta 110-SSS With 800mm Stroke. Compact Unit HSB-Delta With The Following: * Double Internal Profile Rail Guide * Ball Screw Drive * Single Nut * Axial Tolerance (Std): 0.08mm * Repeatability Accuracy (+/-): 0.03mm * Pitch 10mm * Thread Shaft Diameter 16mm * Mech. Stroke: 800mm * Total Length: 1030mm * Slide 1 Short, 145mm * 2 Spindel Support, Noise Reduced * Covered By Cover Band * 2 Limit Switch Inductive, NC w/10m Cable * 8 Fastening Strips, Size 1 * Motor Flange * Coupling Typ 2.1
