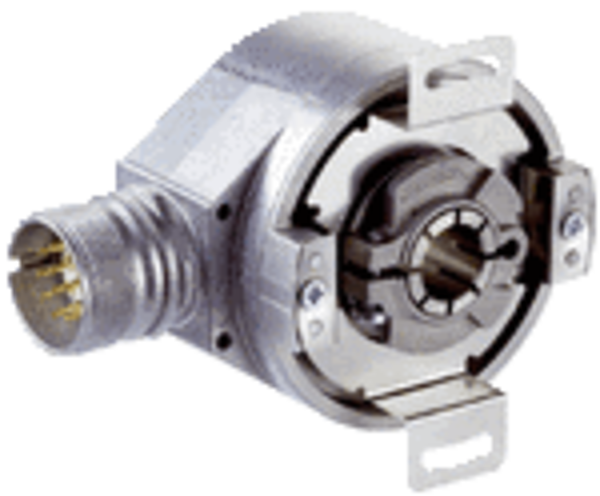

SICK 1051086

Performance Sine/cosine periods per revolution 1,024 Number of the absolute ascertainable revolutions 4,096 Total number of steps 134,217,728 Measuring step 0.3 ″ For interpolation of the sine/cosine signals with, e. g., 12 bits Integral non-linearity Typ. ± 45 ″, Error limits for evaluating sine/cosine period, without mechanical tension of the stator coupling Differential non-linearity ± 7 ″, Non-linearity within a sine/cosine period Operating speed ≤ 6,000 min⁻¹, up to which the absolute position can be reliably produced Available memory area 1,792 Byte Interfaces Type of code for the absolute value Binary Code sequence Rising, For clockwise shaft rotation, looking in direction “A” (see dimensional drawing) Communication interface HIPERFACE® Electrical data Connection type Male connector, M23, 12-pin, radial Supply voltage 7 V DC ... 12 V DC Recommended supply voltage 8 V DC Power consumption < 80 mA (without load) Output frequency for sine/cosine signals ≤ 200 kHz Mechanical data Shaft version Through hollow shaft Shaft diameter 12 mm Shaft material Stainless steel Flange material Zinc diecast Housing material Aluminum die cast
