SICK 1064704

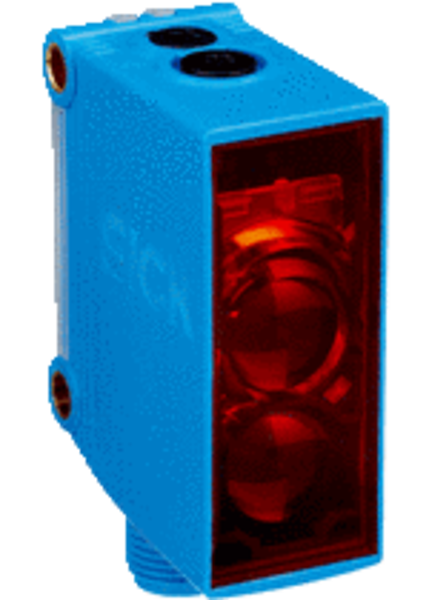

SICK 1064704 (GL10G-P4251) G10 Series Small Photoelectric Retro-Reflective Sensor, Dual Lens, Visible Red PinPoint LED Light, 270° Potentiometer Adjustment, 10-30 VDC Supply, PNP Light/Dark Switching, Male M12 4-Pin Connector
Sensor/ detection principle Photoelectric retro-reflective sensor, Dual lens Dimensions (W x H x D) 20 mm x 50 mm x 39 mm Housing design (light emission) Rectangular Sensing range max. 0.15 m ... 12 m 1) 0.15 m ... 10 m 2) Sensing range 0.3 m ... 9.5 m 1) 0.3 m ... 8 m 2) Type of light Visible red light Light source PinPoint LED 3) Light spot size (distance) Ø 58 mm (5 m) Wave length 625 nm Adjustment Potentiometer, 270° Special applications Detecting transparent objects 1) Reflector PL80A. 2) Reflector P250. 3) Average service life: 100,000 h at TU = +25 °C.
