SICK 1080593

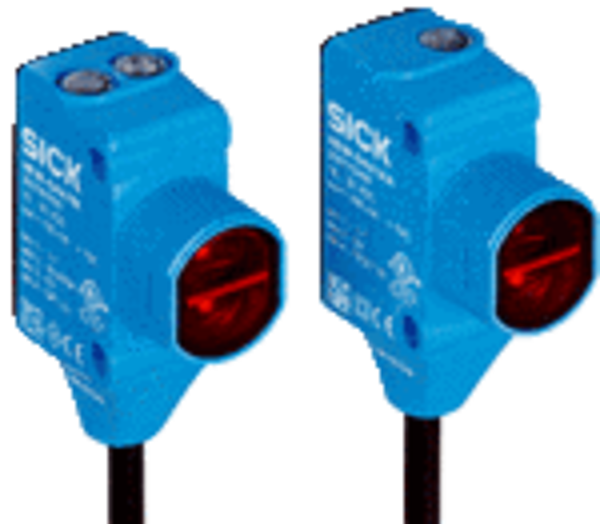

SICK hybrid photoelectric sensors, SureSense, HSE18-P4B1BA, Device version: Standard, Mounting system type: M18, nose / side (24.1 … 25.4 mm), Sensor/ detection principle: Through-beam photoelectric sensor, Sensing range: 20 m, Light source, light type: LED, Infrared light, Voltage type: DC, Switching output Q1: PNP, Light switching, Switching output Q2: PNP, Dark switching, Potentiometer, right: None, Potentiometer, left: None, Connection type: Cable with M12 male connector, 4-pin, 150 mm
Functional principle Through-beam photoelectric sensor Dimensions (W x H x D) 16.2 mm x 45.5 mm x 31.8 mm Housing design (light emission) Hybrid Thread diameter (housing) M18 Mounting system type M18, head/side (24.1 … 25.4 mm) Housing color Blue Sensing range max. 0 m ... 20 m Sensing range 0 m ... 15 m Type of light Infrared light Light source LED 1) Light spot size (distance) 1,400 mm (10 m)
