SICK 1123926

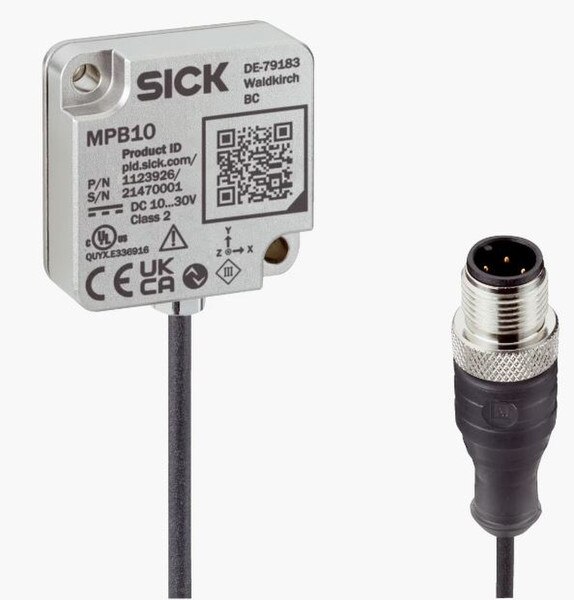

SICK (1123926) MPB10-VS00VSIQ00 Condition Monitoring sensor; Multi Physics Box, Vibration & Shock: 3 Axis, Stainless Steel Housing, IO-Link V1.1 Communication, 10-30 VDC Supply Voltage, IP68 Enclosure Rating, Reverse Polarity & Short-Circuit Protection, Cable With Connector, M12, 4-Pin Pigtail With Knurled Nuts, 0.3 Meters (300mm) Long
Vibration Number of axis 3 Measuring range ± 8 g Measurement error ± 6 % Measuring range a-RMS 0 g ... 5.65 g Measuring range v-RMS 0 mm/s ... 100 mm/s, At 88 Hz Frequency range 0.78 Hz ... 3,200 Hz Frequency resolution ≥ 0.78 Hz Bandpass filter Freely parameterizable in the range 1 ... 3200 Hz Trigger Automatic/IO-Link/external Block length 0.02 s ... 1.28 s Signal type Acceleration/speed
