SICK 1218667

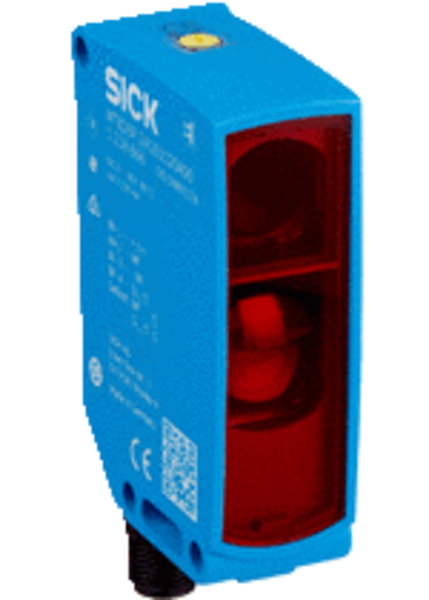

SICK WTB26I-24161120A00 Photoelectric Proximity Sensor, Background Suppression, Rectangular, Infrared Light, LED, 10-30VDC, Push/Pull Switching Output, Switching Output or IO-Link Mode, Light/Dark Switching, Male Connector M12, 4-Pin
Sensor/ detection principle Photoelectric proximity sensor, Background suppression Dimensions (W x H x D) 24.6 mm x 82.5 mm x 53.3 mm Housing design (light emission) Rectangular Sensing range max. 30 mm ... 2,000 mm 1) Type of light Infrared light Light source LED 2) Light spot size (distance) Ø 14 mm (1,000 mm) Wave length 850 nm Adjustment Teach-Turn adjustment BluePilot: for setting the sensing range IO-Link For configuring the sensor parameters and Smart Task functions
