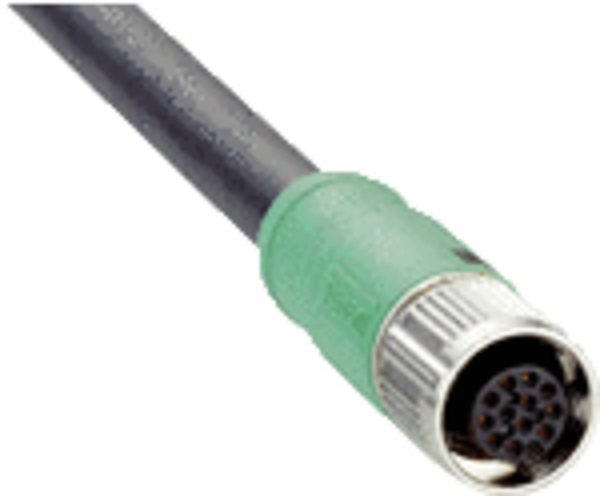

SICK 6042735

Accessory group Plug connectors and cables Accessory family Connecting cables Connection type head A Female connector, M12, 12-pin, straight, A-coded Connection type head B Flying leads Connection type Flying leads Connector material TPU Locking nut material Zinc die-cast, nickel-plated Cable 5 m, 12-wire, PUR, halogen-free Jacket material PUR, halogen-free Jacket color Black Cable diameter 8.5 mm Conductor cross-section 0.14 mm² Shielding Shielded Bending radius Flexible use > 10 x cable diameter Stationary position > 5 x cable diameter Bending cycles 2,000,000 Reference voltage ≤ 30 V Current loading 1.5 A Traversing speed 3 m/s Travelling distance 10 m Acceleration ≤ 10 m/s² Signal type Sensor/actuator cable, I/O Special feature Twisted pair Application Zones with oils and lubricants Enclosure rating IP65/ IP67 Ambient operating temperature Flexible use –5 °C ... +80 °C Stationary position –30 °C ... +80 °C Head –25 °C ... +90 °C
