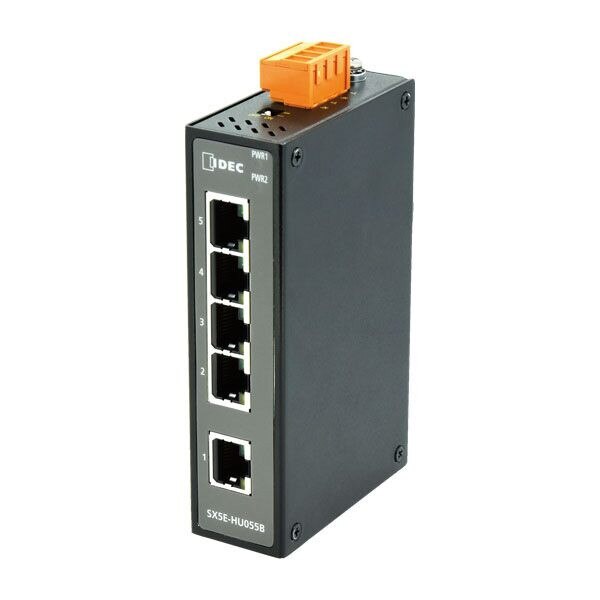

|| IDEC SX5E-HU055B(0)No Reviews yet $124.21 SKU: SX5E-HU055B Standard Shipping Lead Time 4 Business Days Item is IN STOCK. Stock Items ship within 24 Hours.Current Stock: 1 Quantity -+ Add to Cart Description IDEC (SX5E-HU055B) 5 port Ethernet Switch Rated Input Voltage 12/24/48V DC, 24V AC Voltage Tolerance 9-60V DC, 18-30V AC Power Consumption 3.4 W E... Specifications KEY FEATURES • Compact Unmanaged Industrial Ethernet Switch • 5-port 10/100 Mbps • Wide Operating Voltage range: 9-60V DC, 18-30V AC • Wide Oper... Literature Click DescriptionSpecificationsLiterature Back IDEC (SX5E-HU055B) 5 port Ethernet Switch Rated Input Voltage 12/24/48V DC, 24V AC Voltage Tolerance 9-60V DC, 18-30V AC Power Consumption 3.4 W Ethernet Standard IEEE802.3u (100BASE-TX)/IEEE802.3i (10BASE-T) compliant Data Transfer Speed 10Mbps/100Mbps (Auto-negotiation function) Communication Method All ports full/half duplex (Auto-negotiation function) Number of Ports 5 Frame Transfer Method Store and forward Throughput 0.75 Mpps Address Table 2,048 entries Buffer Size 1 Mbits Back KEY FEATURES • Compact Unmanaged Industrial Ethernet Switch • 5-port 10/100 Mbps • Wide Operating Voltage range: 9-60V DC, 18-30V AC • Wide Operating Temperature range: -40 to +75 ˚C • Full/Half Duplex Operation • Supports Auto-MDI/MDIX Function • Redundant Power Input • Broadcast Storm Protection • IP30 Protection Rugged Metal Housing • cULus, CE, Class I, Division 2 Back Click HERE to download literature or more information on this product. Reviews 0 Back Ratings & ReviewsNo reviews availableBe the first to Write a Review
|
|
|| || ||
